Introduction

Go-down wiring is a sort of electrical system that controls the lights in a warehouse or go-down sequentially. This wiring assures that when a person enters the first room and turns on the light, they can only turn on the following room’s light after entering it, while simultaneously shutting off the previous room’s light. This helps to save electricity, particularly in extended storage areas.

Purpose of proper lighting wiring connection in Godown –

• To control multiple lights in a long go-down or warehouse.
• To ensure that only the room being used remains lit.
• To save power by switching OFF previous rooms automatically as the person moves forward.

Components Used in the Circuit Diagram of Godown Wiring

Godown wiring circuit diagram needs less amount of components, which are listed below –

• Multiple 2-way (SPDT) switches
• Lamps (as per number of rooms)
• Phase and neutral wires
• Traveler/strapper wires

Godown Wiring Connection Diagram with Working Principle

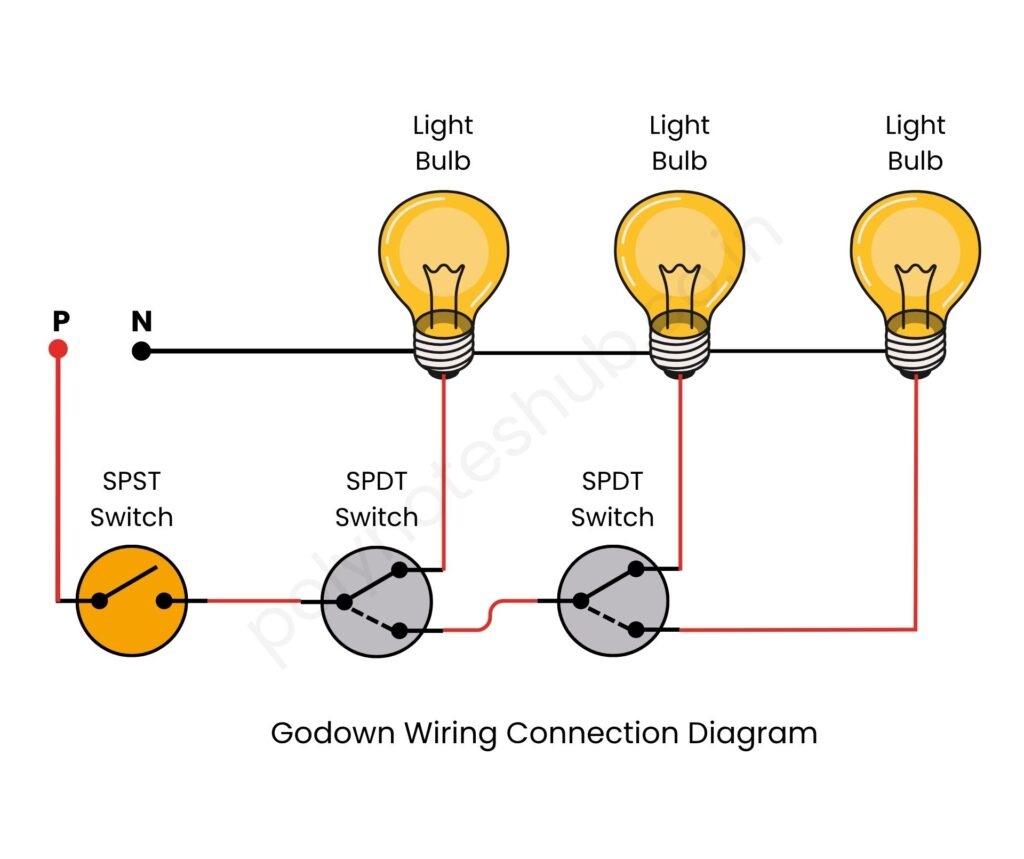

This is the godown wiring layout diagram –

Working Principle

• Each room has two switches—one at the entrance and one at the exit.
• When a person enters Room 1, they turn ON the light using Switch S1.
• Before entering Room 2, they turn ON Room 2 light using Switch S2 and turn OFF Room 1 light using the second switch at Room 1’s exit.
• This continues for all rooms.
• The arrangement ensures only the room currently occupied remains illuminated.

Advantages

• Saves electricity in large go-down areas
• Provides safe movement between rooms
• Easy to control
• Simple and economical wiring
