8086 Microprocessor Pin Diagram with Explanation
About 8086 Microprocessor
The 8086 microprocessor is a 16-bit microprocessor invented by Intel in 1978. It has a 20-bit address bus and can access 1 MB of memory. It works in minimum and maximum modes, provides pipelining via a 6-byte instruction queue, and serves as the foundation for the x86 processor family found in most current computers.
Key Features of 8086 Microprocessor
- 16-bit ALU (Arithmetic Logic Unit)
- 20-bit Address Bus
- 16-bit Data Bus
- Segmented Memory Architecture
- 6-byte Prefetch Queue (Pipelining)
- Two Operating Modes
- 40 Pins Total

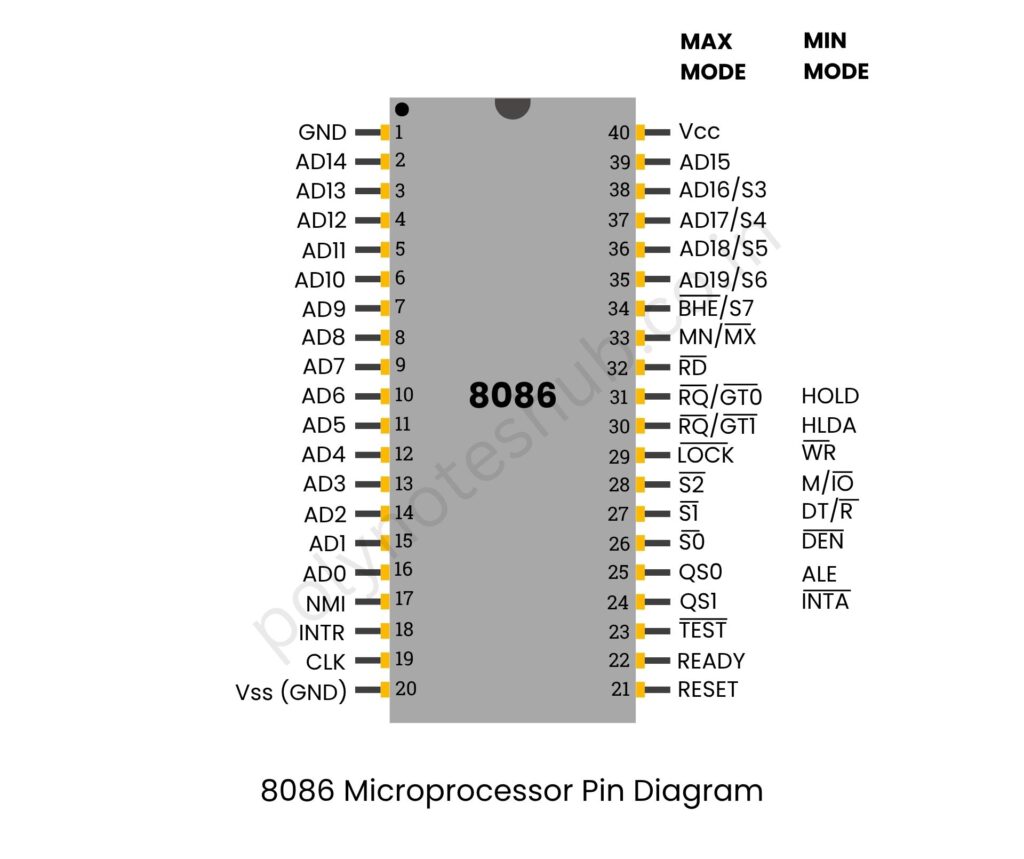

Here is the pin diagram of the 8086 microprocessor with the function of each pin –
1. Address/Data Bus
| Pin(s) | Name | Description |
|---|---|---|
| AD0–AD15 | Address/Data Bus | These are multiplexed lines. During the first part of the bus cycle, they carry the address, and during the second part, they carry data. |
| A16–A19/S3–S6 | Address/Status Bus | These are multiplexed lines used to provide the upper 4 bits of the 20-bit address or status signals depending on the cycle. |
2. Control and Status Signals
| Pin | Name | Description |
|---|---|---|
| M/IO | Memory/Input Output | Tells whether the current operation is memory access (1) or I/O operation (0). |
| RD | Read | Signals that the microprocessor is performing a read operation. |
| WR | Write | Signals that the microprocessor is performing a write operation. |
| DT/R | Data Transmit/Receive | Used to control the direction of data flow through transceivers. |
| DEN | Data Enable | Enables the transceivers (data buffers). |
| ALE | Address Latch Enable | Indicates that valid address is available on the multiplexed bus. It helps to latch the address. |
| INTA | Interrupt Acknowledge | Indicates the processor has acknowledged an interrupt request. |
| TEST | Test | Used to synchronize with external WAIT signals during debugging. |
3. Interrupt and DMA (Direct Memory Access) Pins
| Pin | Name | Description |
|---|---|---|
| INTR | Interrupt Request | General-purpose interrupt line. Activated by an external device. |
| NMI | Non-Maskable Interrupt | Cannot be disabled by software; used for emergency or high-priority interrupts. |
| HOLD | Hold | Indicates that another device is requesting the use of the address/data bus. |
| HLDA | Hold Acknowledge | Indicates that the processor has granted the bus control to another device. |
4. Clock and Power Pins
| Pin | Name | Description |
|---|---|---|
| CLK | Clock | Provides timing for synchronization of internal operations. |
| RESET | Reset | Initializes the microprocessor and starts execution from memory location FFFF0H. |
| VCC | Power Supply | +5V DC power supply. |
| GND | Ground | 0V reference for the power supply. |
5. Ready and Queue Status
| Pin | Name | Description |
|---|---|---|
| READY | Ready | Used to insert wait states for slow memory or I/O devices. |
| QS0, QS1 | Queue Status | Indicate the status of the instruction queue (used in pipelining). |
