Different Types of Push Buttons or Switches

Push buttons are among the simplest yet most crucial components found in electrical and electronic systems. From household appliances to industrial gear, they enable consumers to manage processes with a single press. In this article, we’ll look at the eight most popular types of push buttons, how they work, and where they’re utilized.

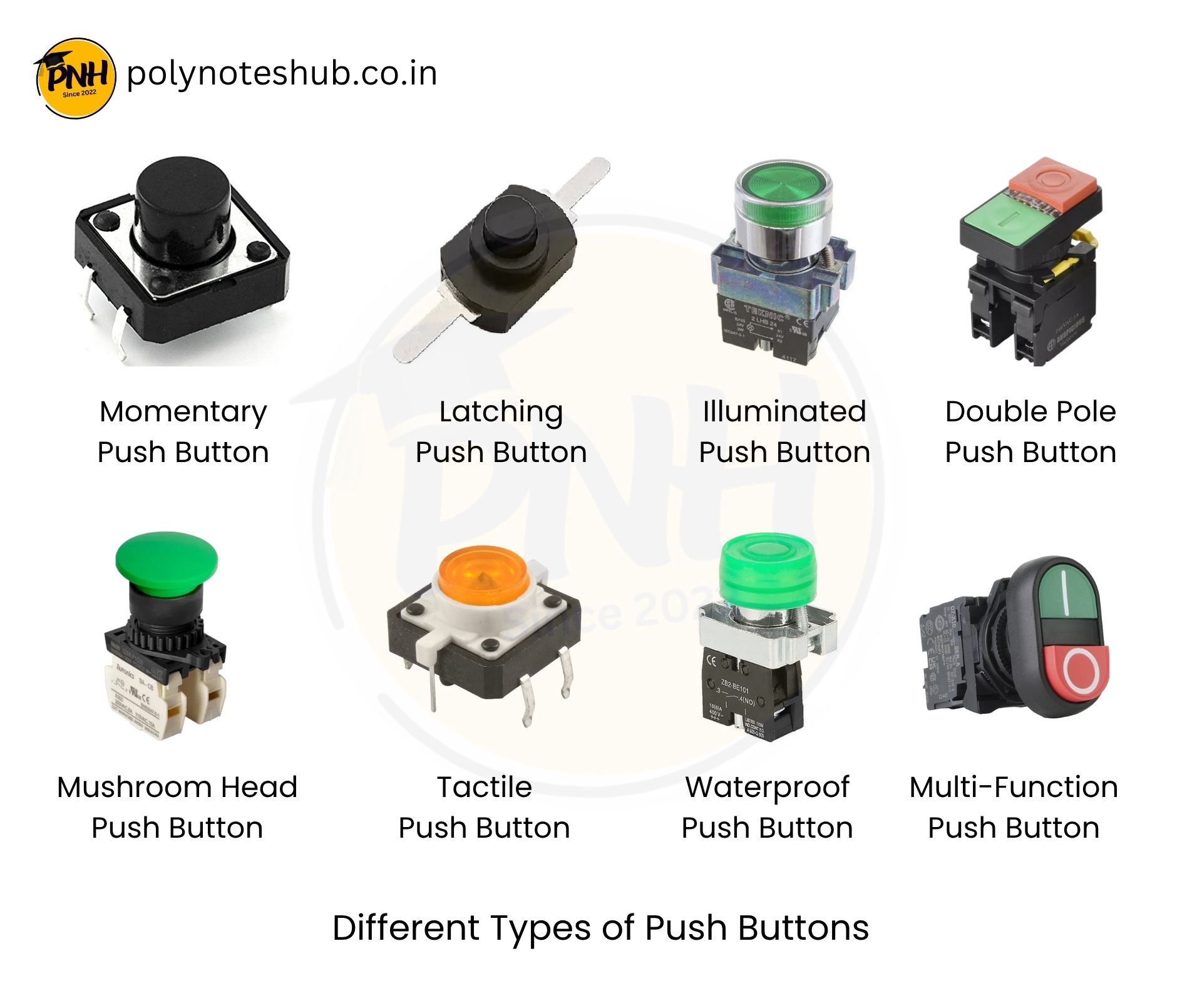

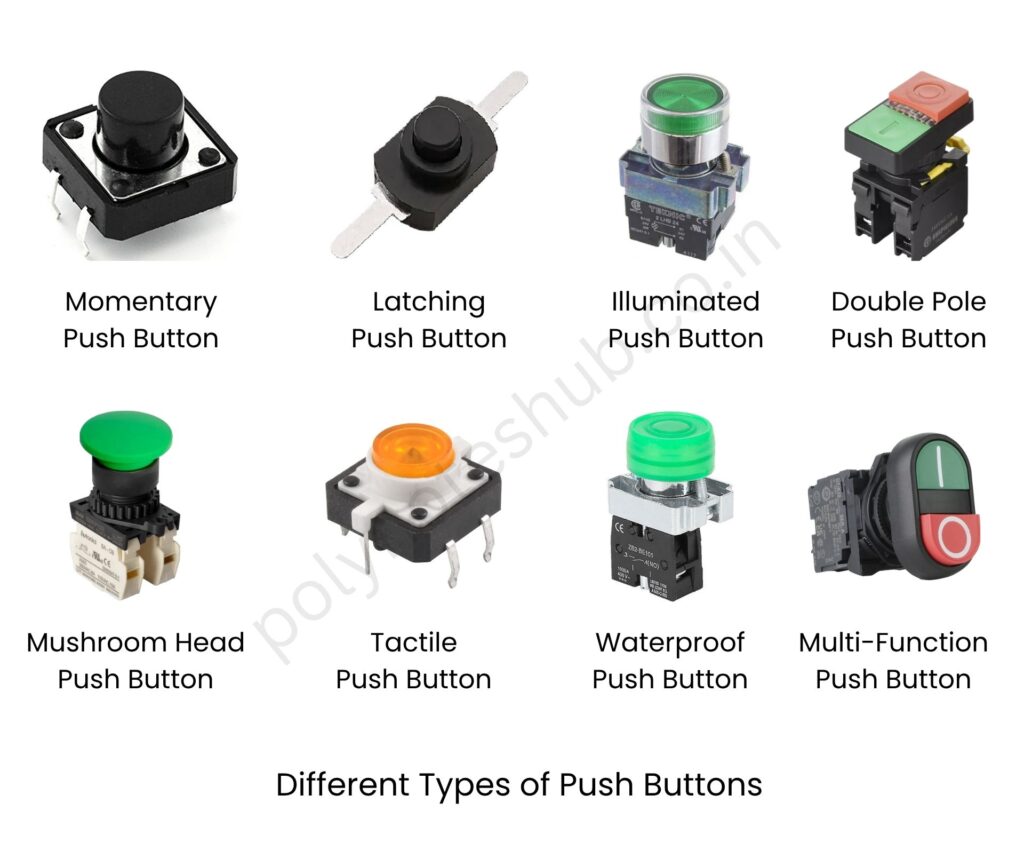

different types of push buttons - poly notes hub

1. Momentary Push Button

  • Definition: A momentary push button stays active only while being pressed. Once released, it returns to its original position.
  • Working Process: When the user presses the button, the circuit is completed and current flows. Once the pressure is released, the internal spring returns the button to its default position, breaking the circuit.

Applications:

  • Doorbells
  • Keyboards and calculators
  • Elevator control panels
  • Testing and reset systems

2. Latching Push Button

  • Definition: A latching push button maintains its position after being pressed. Press once to turn ON, and press again to turn OFF.
  • Working Process: Internally, it uses a mechanical latch. When you press it the first time, the circuit stays connected. Pressing it again releases the latch and disconnects the circuit.

Applications:

  • Power buttons in appliances
  • Lamp switches
  • Audio systems
  • Small motor controls

3. Illuminated Push Button

  • Definition: This push button includes an integrated LED or neon lamp to provide visual feedback of its status.
  • Working Process: When the button is pressed, both the electrical connection is made, and the internal light turns ON. The light can be wired independently or together with the switch.
See also  Advantages of Diesel Electric Power Plants | New Note [2024]

Applications:

  • Industrial control panels
  • Emergency systems
  • Machinery with status indicators
  • Operator stations

4. Double Pole Push Button

  • Definition: A double pole push button can control two separate electrical circuits at the same time.
  • Working Process: This switch contains two individual contacts that operate simultaneously. Pressing it either connects or disconnects both lines in one action.

Applications:

  • Heavy-duty machinery
  • Dual voltage or dual-phase devices
  • High-power industrial tools
  • HVAC systems

5. Mushroom Head Push Button

  • Definition: Characterized by its large, round head, this button is designed for emergency stops or easy pressing in urgent situations.
  • Working Process: The large surface area ensures it can be quickly and easily pressed in case of emergency. Once pressed, it latches into position and breaks the circuit until reset.

Applications:

  • Emergency stop systems (E-Stop)
  • Factory machinery safety control
  • Transport systems (e.g., trains, buses)
  • Assembly line shutdowns

6. Tactile Push Button

  • Definition: A tactile push button gives a physical “click” or feedback when pressed.
  • Working Process: Inside, a small dome compresses and snaps when pressed, completing the circuit and providing that noticeable tactile feedback.

Applications:

  • Remote controls
  • Game controllers
  • Medical devices
  • Wearable electronics and IoT gadgets

7. Waterproof Push Button

  • Definition: This push button is sealed to prevent water, dust, or oil from entering, making it ideal for harsh environments.
  • Working Process: With an IP65 (or higher) rating, it has rubber or plastic seals that keep moisture and particles out while maintaining electrical conductivity when pressed.

Applications:

  • Outdoor machinery
  • Marine applications
  • Food processing units
  • Chemical industries

8. Multi-Function Push Button

  • Definition: A single button that performs multiple tasks such as start/stop or forward/reverse control.
  • Working Process: Internally configured to handle multiple contacts, this button can trigger two or more operations depending on how it is pressed or held.
See also  What is Directional Relay? - Construction, Working | New Topic [2024]

Applications:

  • CNC machines
  • Conveyor belts
  • Automation systems
  • Complex motor controls

Push buttons may appear simple, yet they serve an important role in ordinary life and modern technology. From momentary buttons on doorbells to multi-function buttons in industrial control systems, each type has a specific purpose. Choosing the appropriate push button is determined by your application’s environmental, safety, and functional requirements.
