Staircase Wiring Diagram Using Two Way Switch – Explanation | New Topic

In this note, we are going to learn about the Staircase Wiring Diagram using Two Way Switch with Explanation and also know about its advantages. Welcome to Poly Notes Hub, a leading destination for engineering notes for diploma and degree engineering students.

Author Name: Arun Paul

Introduction

Staircase wiring is a wiring technique that allows you to control one light from two distinct locations. It is widely used in staircases, lengthy corridors, bedrooms (two-door rooms), and hallways when a user has to turn on or off the same light from two different locations.

Purpose of this Wiring in Staircase Lighting

• To operate a lamp from two switches placed at two different positions.
• Provides convenience and safety, especially in staircases where switching the light from either floor is necessary.

Components used in Staircase Wiring Diagram

We have listed the components that are used to create the circuit –

• Two 2-way (SPDT) switches
• One lamp (bulb)
• Phase (Live) wire
• Neutral wire
• Connecting wires

Staircase Wiring Diagram Using Two Way Switch with Explanation

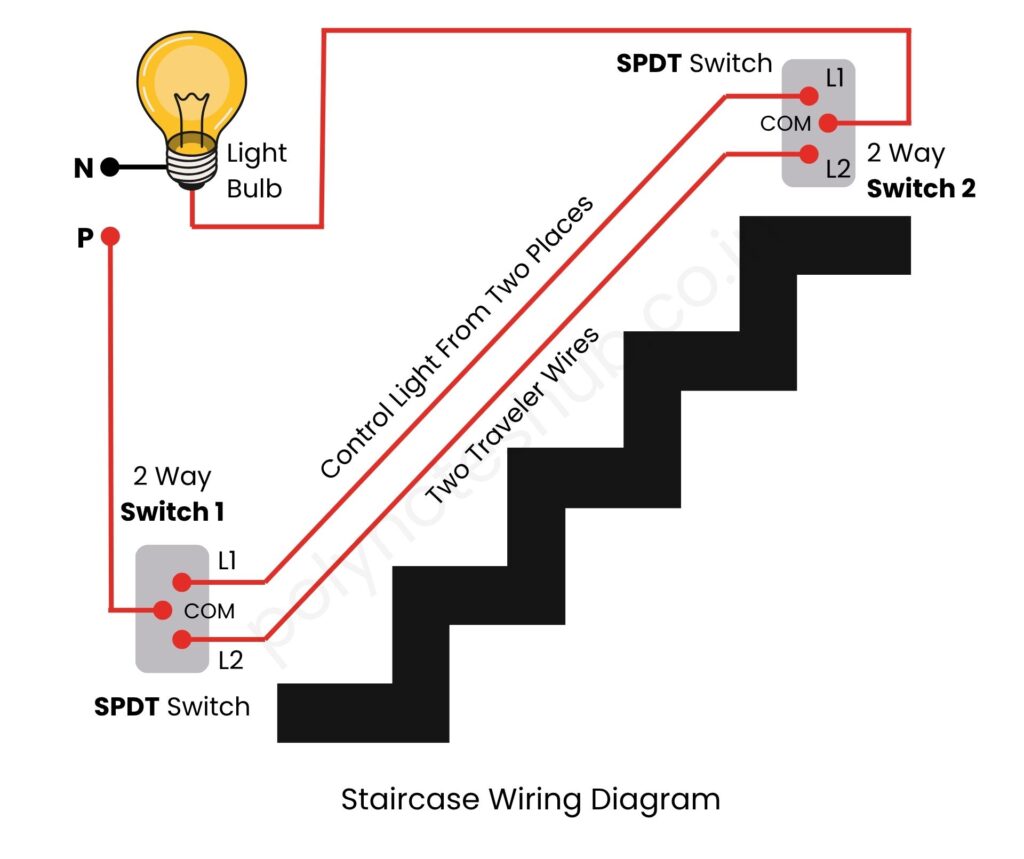

Here we have attached the image of a staircase wiring diagram with 2 way switch, and we also explain how this is actually works –

Working Principle

• The two 2-way switches are connected in such a way that changing the position of any one switch will either complete or break the circuit and thus turn the lamp ON or OFF.
• The switches create a path for current through traveler wires. When the path is complete, the lamp glows.

How the Circuit Works

• Each switch has one common terminal (C) and two L1 and L2 terminals.
• The phase wire is connected to the common terminal of the first switch.
• The two traveler wires connect the L1 of switch 1 → L1 of switch 2 and L2 of switch 1 → L2 of switch 2.
• The common terminal of switch 2 goes to the lamp.
• The other lamp terminal is connected to neutral.
• When both switches are in the same position, the circuit completes → Light ON.
• When the switches are in opposite positions, the circuit breaks → Light OFF.

Applications

• Staircases (between ground floor and first floor)
• Long hallways
• Bedrooms with two doors
• Garage or outdoor lighting

Advantages

• Convenient to operate a light from two locations
• Enhances safety during night time
• Cost-effective and simple wiring method
