In this note, we are going to learn about Types of Proximity Sensors and their Working, Advantages, Disadvantages, and applications. Welcome to Poly Notes Hub, a leading destination for polytechnic engineering notes.
Author Name: Arun Paul.

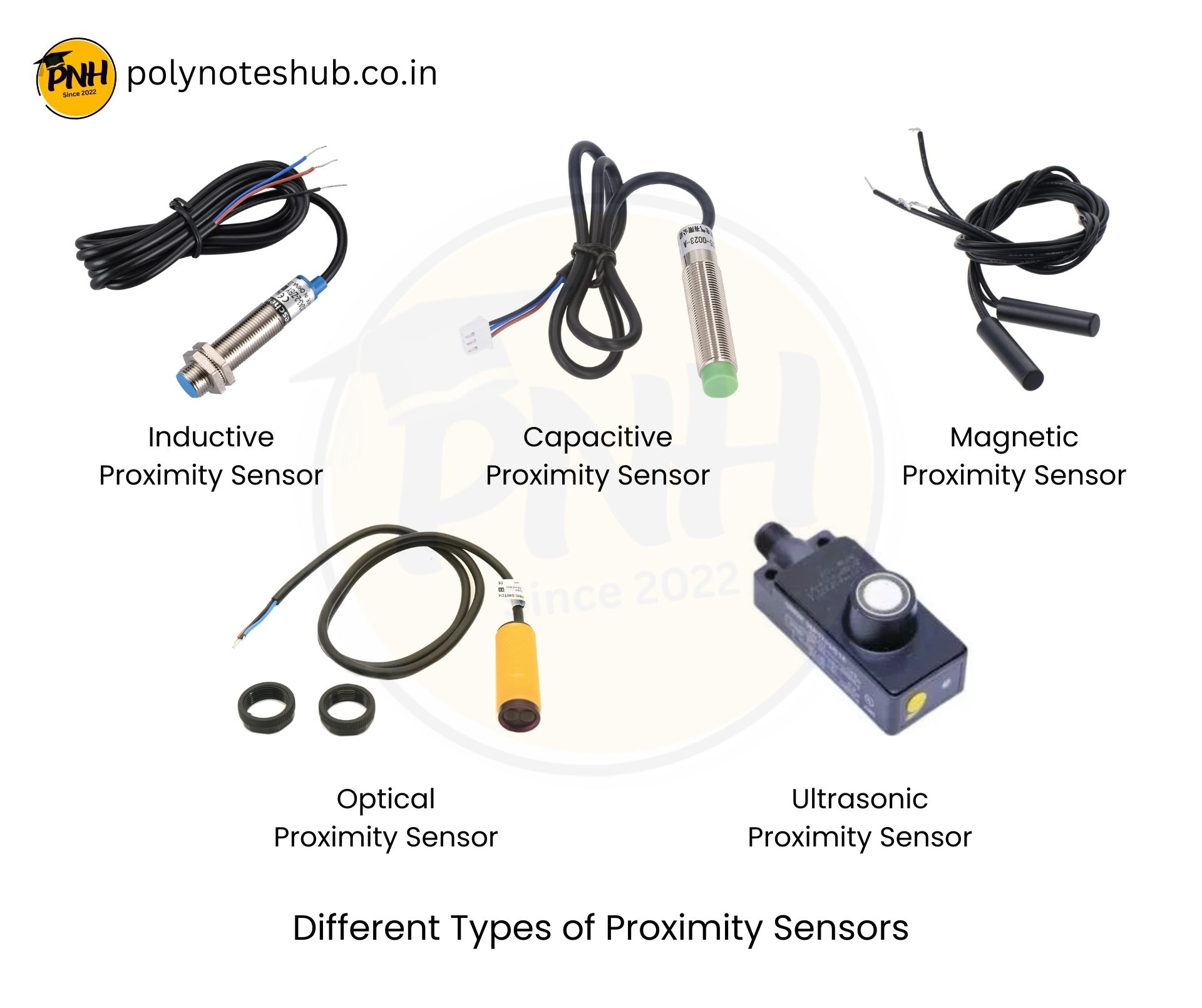

Types of Proximity Sensors

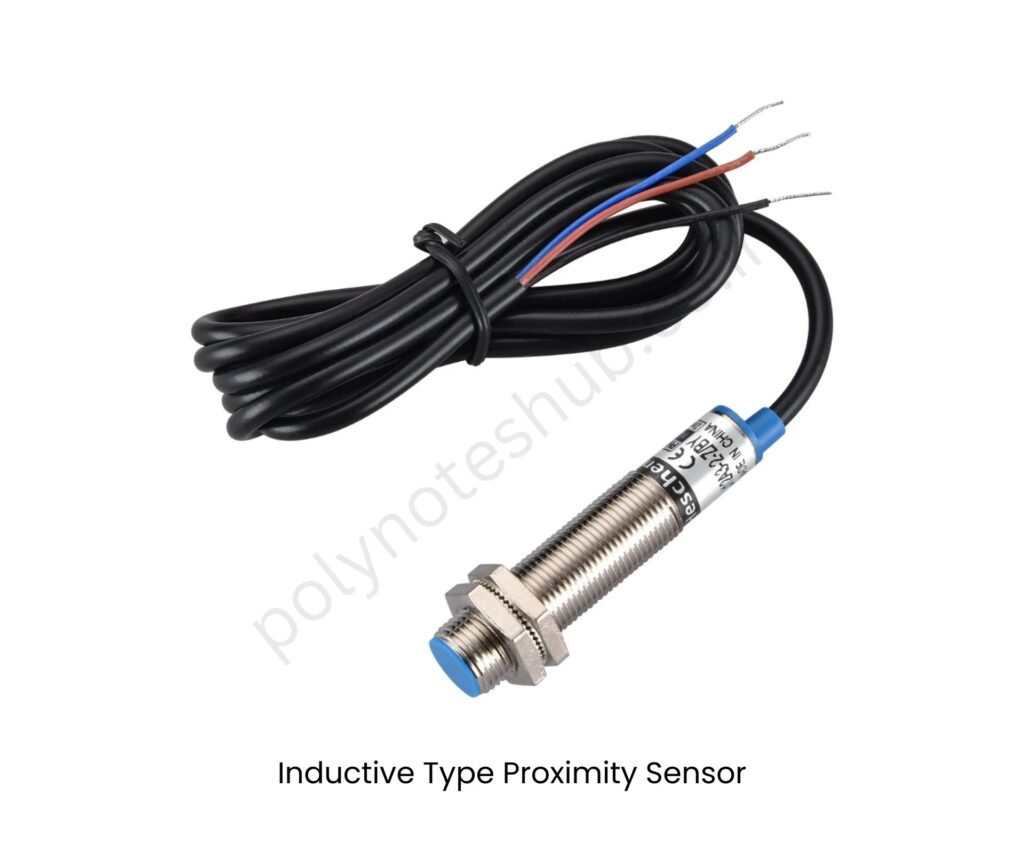

1. Inductive Proximity Sensor
Working Principle of Inductive Proximity Sensor
Inductive proximity sensors work on the principle of electromagnetic induction. The sensor generates a high-frequency electromagnetic field. When a metal object enters this field, eddy currents are produced in the metal which reduce the oscillation amplitude, triggering the sensor output.
Advantages of Inductive Proximity Sensor
- High accuracy and reliability
- Fast response time
- Long life due to no physical contact
- Resistant to dust and oil
Disadvantages of Inductive Proximity Sensor
- Can detect only metallic objects
- Short sensing distance
Applications of Inductive Proximity Sensor
- Metal detection in industries
- Position sensing of machine parts
- Counting metallic objects on conveyor belts
- Speed detection of rotating parts
Range of Inductive Proximity Sensor
Typically 1 mm to 40 mm

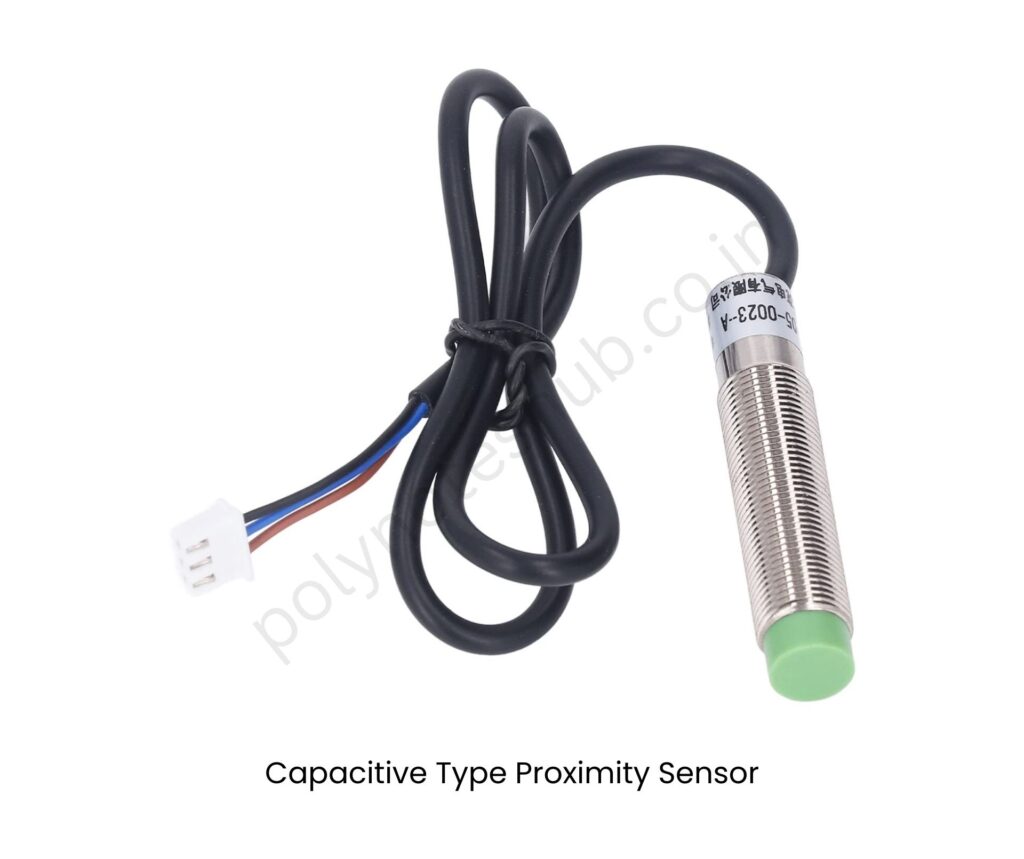

2. Capacitive Proximity Sensor
Working Principle of Capacitive Proximity Sensor
Capacitive sensors work based on change in capacitance between the sensor electrode and the object. When an object (metal or non-metal) approaches the sensing area, the dielectric constant changes, causing a variation in capacitance which triggers the sensor.
Advantages of Capacitive Proximity Sensor
- Detects both metallic and non-metallic objects
- Can detect liquids, powders, and plastics
- High sensitivity
Disadvantages of Capacitive Proximity Sensor
- Sensitive to environmental factors like humidity and temperature
- Short sensing range
- May give false signals
Applications of Capacitive Proximity Sensor
- Liquid level detection in tanks
- Plastic and glass detection
- Packaging industries
- Food and chemical industries
Range of Capacitive Proximity Sensor
Typically 2 mm to 25 mm

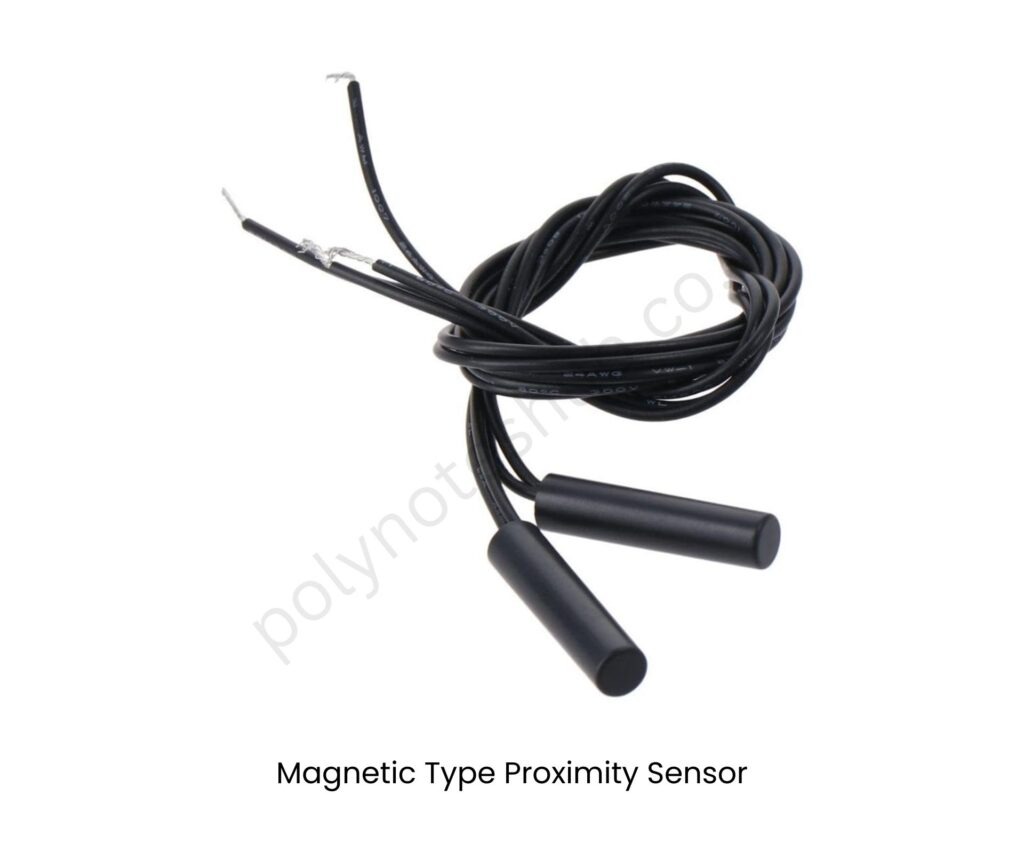

3. Magnetic Proximity Sensor
Working Principle of Magnetic Proximity Sensor
Magnetic proximity sensors operate by detecting a magnetic field. When a magnet or magnetic material approaches the sensor, the magnetic field changes and activates the sensor output.
Advantages of Magnetic Proximity Sensor
- Works in harsh environments
- Can operate through non-metallic materials
- Low power consumption
Disadvantages of Magnetic Proximity Sensor
- Requires a magnet or magnetic target
- Limited sensing distance
Applications of Magnetic Proximity Sensor
- Door position detection
- Speed sensing in rotating machinery
- Automotive systems
- Security systems
Range of Magnetic Proximity Sensor
Typically 10 mm to 80 mm

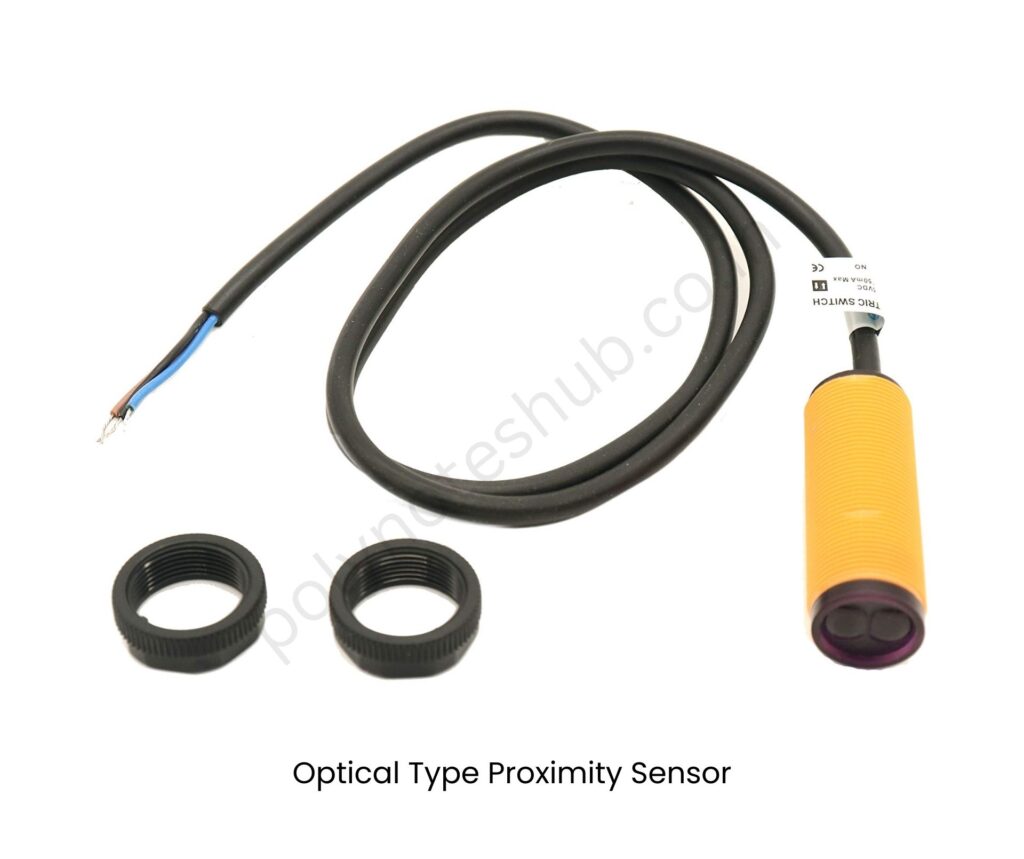

4. Optical (Photoelectric) Proximity Sensor
Working Principle of Optical Proximity Sensor
Optical sensors use light (usually infrared) for detection. A light beam is emitted from the sensor and when an object interrupts or reflects the beam, the sensor detects the object.
Advantages of Optical Proximity Sensor
- Long sensing distance
- Detects small objects
- Works with almost all materials
Disadvantages of Optical Proximity Sensor
- Affected by dust, smoke, or dirt
- Sensitive to ambient light
Applications of Optical Proximity Sensor
- Object detection in conveyor systems
- Automatic doors
- Counting products in industries
- Robotics and automation
Range of Optical Proximity Sensor
Typically 10 cm to 10 m

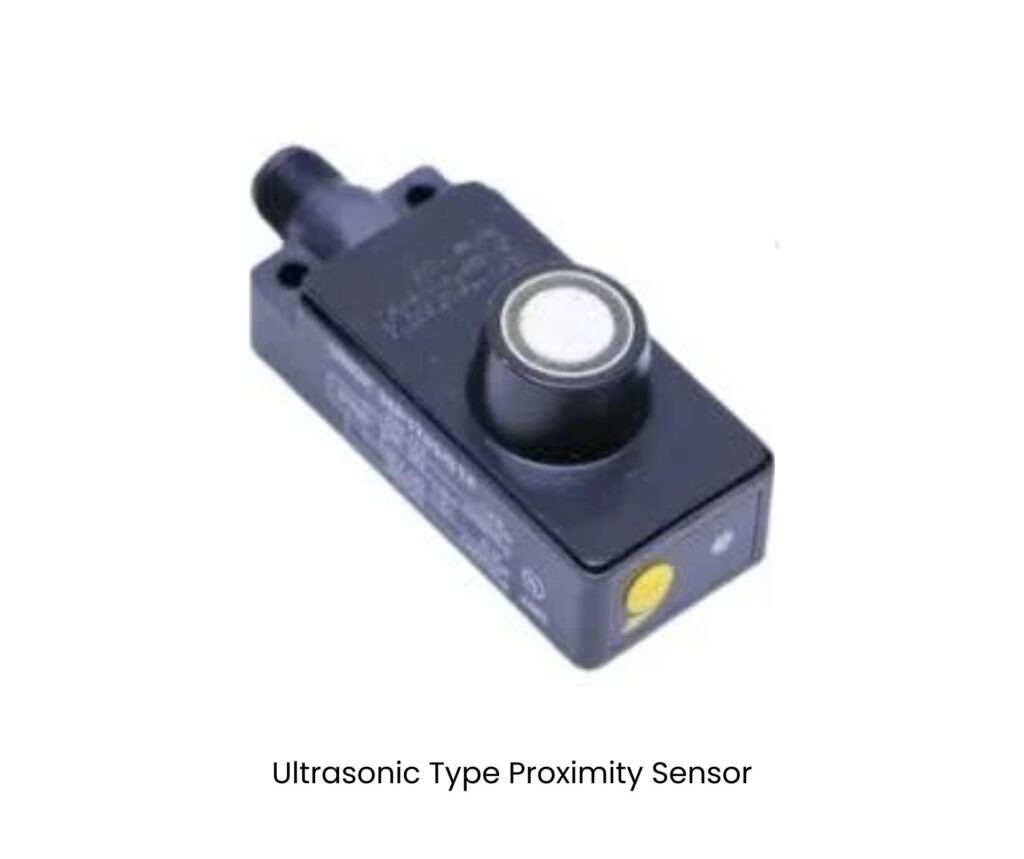

5. Ultrasonic Type Proximity Sensor
Working Principle of Ultrasonic Proximity Sensor
Ultrasonic sensors work by emitting ultrasonic sound waves. When these waves hit an object, they are reflected back to the sensor. The time taken for the echo to return is used to determine the presence and distance of the object.
Advantages of Ultrasonic Proximity Sensor
- Detects solid, liquid, and transparent objects
- Long sensing range
- Not affected by color or transparency
Disadvantages of Ultrasonic Proximity Sensor
- Slower response compared to optical sensors
- Affected by temperature and air pressure changes
Applications of Ultrasonic Proximity Sensor
- Distance measurement
- Liquid level detection
- Robotics and obstacle detection
- Parking sensors in vehicles
Range of Ultrasonic Proximity Sensor
Typically 2 cm to 10 m
